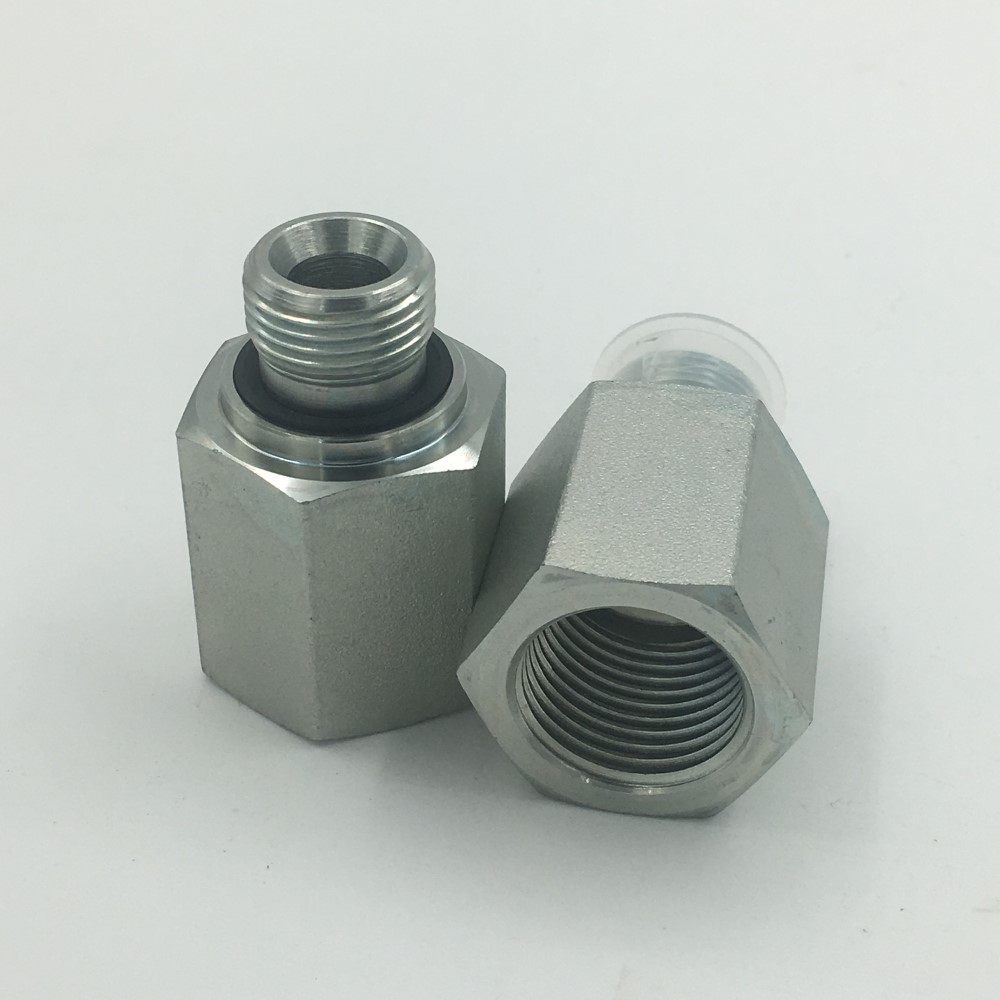

BSP Male Female Adapter 5B-WD

BSP Male Female Adapter 5B-WD

Description

Reviews

BSP male captive seal female adapter 5B-WD .Our forging technology make lower cost , but strength higher than normal process method .It has different material for customer work condition . Such as :steel , stainless steel 304 and 316  , and else .We are professional manufaturer for hydraulic fitting and adapter , we could produce the part according to your drawing and sample .
Specifications
PART NO. THREADE DIMENSIONS
E F A S1 L
5B-02-04WD G1/8"X28 G1/4"X19 10 19 28
5B-02-06WD G1/8"X28 G3/8"X19 10 22 30
5B-04-02WD G1/4"X19 G1/8"X28 12 19 30
5B-04-06WD G1/4"X19 G3/8"X19 12 22 32
5B-04-08WD G1/4"X19 G1/2"X14 12 27 32
5B-06-02WD G3/8"X19 G1/8"X28 13.5 22 33.5
5B-06-04WD G3/8"X19 G1/4"X19 13.5 22 33.5
5B-06-08WD G3/8"X19 G1/2"X14 13.5 27 33.5
5B-08-04WD G1/2"X14 G1/4"X19 16 22 36
5B-08-06WD G1/2"X14 G3/8"X19 16 27 36
5B-08-12WD G1/2"X14 G3/4"X14 16 32 40
5B-12-08WD G3/4"X14 G1/2"X14 18.5 32 42.5
5B-12-16WD G3/4"X14 G1"X11 18.5 41 52.5
5B-12-20WD G3/4"X14 G1.1/4"X11 18.5 50 52.5
5B-16-12WD G1"X11 G3/4"X14 20.5 41 54.5
5B-16-20WD G1"X11 G1.1/4"X11 20.5 50 56.5
5B-20-16WD G1.1/4"X11 G1"X11 20.5 50 56.5
5B-20-24WD G1.1/4"X11 G1.1/2"X11 20.5 55 57.5
5B-20-32WD G1.1/4"X11 G2"X11 20.5 70 57.5
5B-24-16WD G1.1/2"X11 G1"X11 23 55 60
5B-24-20WD G1.1/2"X11 G1.1/4"X11 23 55 60
5B-24-32WD G1.1/2"X11 G2"X11 23 70 60
About us
Our product includes hydraulic hose fittings, hydraulic adapters, hydraulic hose , hydraulic ferrule , hydraulic manifold . This product is used wide application in all the world. Each type also could be processed in different materials such as brass fittings, steel coating fittings, stainless Fittings 304 and 316.

Our hydraulic adapters are reasonably priced and high-quality, and are the preferred cooperative brand for many factories, wholesalers, and distributors.
If you need to buy hydraulic adapters in bulk, please contact us!
