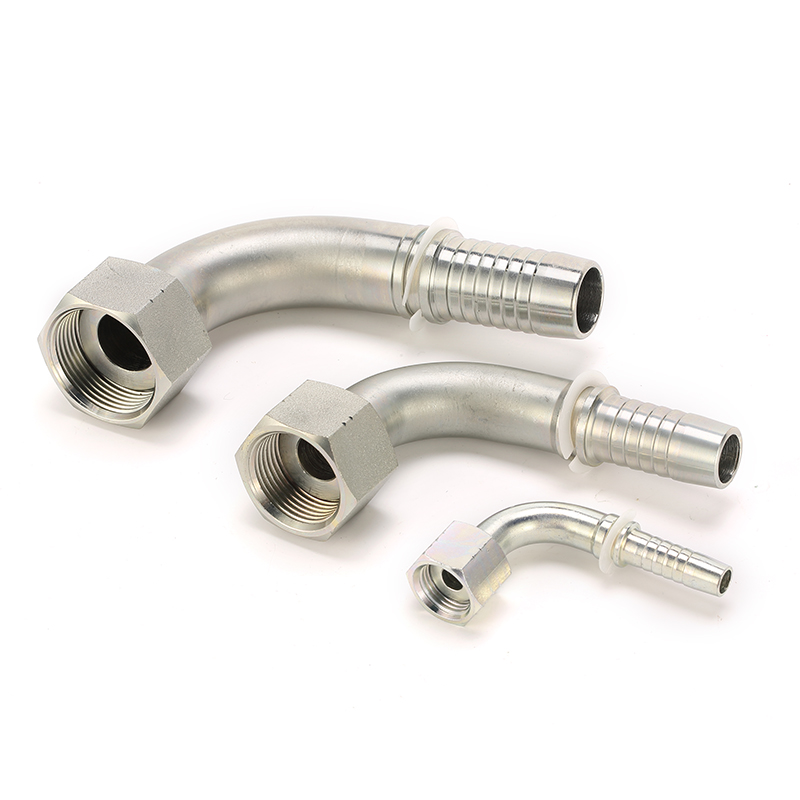

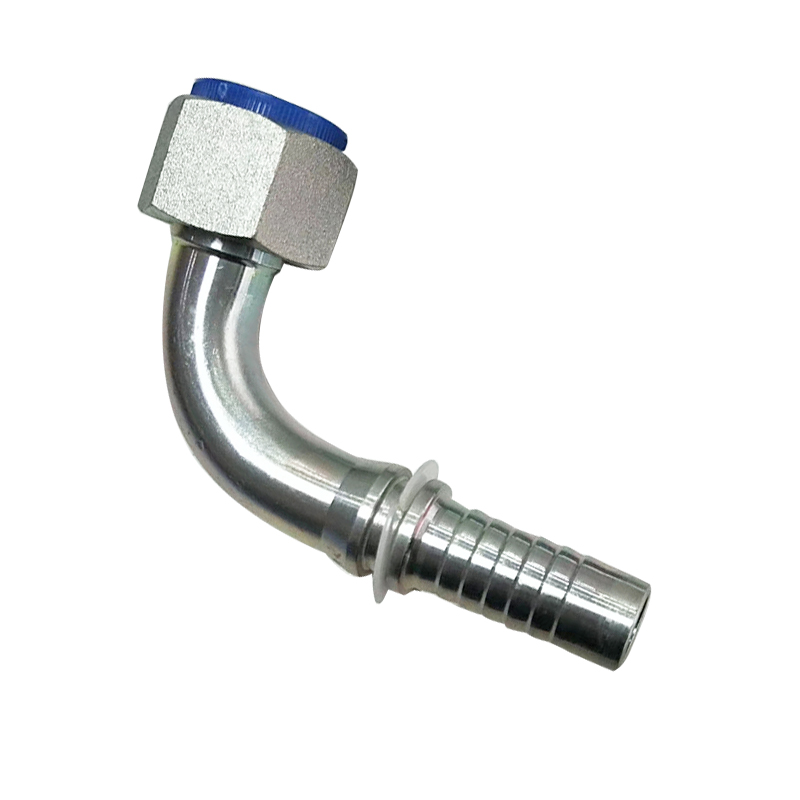

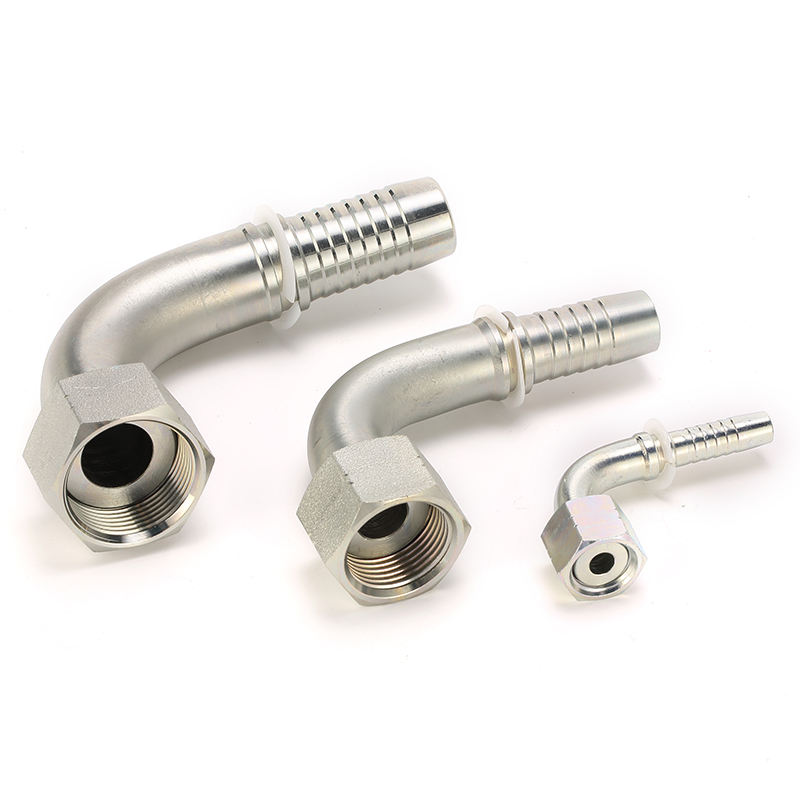

90°ORFS Female Flat Seat ISO 12151-1---SAE J516 hydraulic hose fitting .It could use for braided hoses and spiral hoses . On the other hand , it has different material for customer work condition . Such as :steel , stainless steel 304 and 316 , and else .We are professional manufaturer for hydraulic fitting and ferrule , we could produce the part according to your drawing and sample .

Specifications

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	H	C	S2
24291-04-04	9/16"X18	6	4	30	41	8.5	19
24291-04-05	9/16"X18	8	5	33	44	8.5	19
24291-04-06	9/16"X18	10	6	35.3	46.3	8.5	19
24291-06-06	11/16"X16	10	6	35.3	49.8	10	22
24291-06-08	11/16"X16	12	8	41	55	10	22
24291-08-08	13/16"X16	12	8	41	57	11	27
24291-08-10	13/16"X16	16	10	56.5	61.5	11	27
24291-10-10	1"X14	16	10	56.5	66	13.5	30
24291-10-12	1"X14	20	12	65.5	75.5	13.5	30
24291-12-12	1.3/16"X12	20	12	65.5	77	15	36
24291-12-16	1.3/16"X12	25	16	76.7	83.5	15	36
24291-16-20	1.7/16"X12	32	20	91.5	96	14.8	41
24291-06-05T	11/16"X16	8	5	33	37.5	10	22
24291-08-06T	13/16"X16	10	6	35.3	39.8	11	27
24291-10-08T	1"X14	12	8	41	46	13.5	30
24291-12-10T	1.3/16"X12	16	10	56.5	51.5	15	36
24291-16-12T	1.7/16"X12	20	12	65.5	63	14.8	41
24291-16-14T	1.7/16"X12	22	14	71.2	63	14.8	41
24291-16-16T	1.7/16"X12	25	16	76.9	67.5	14.8	41
24291-20-16T	1.11/16"X12	25	16	76.7	67.5	15	50
24291-24-20T	2"X12	32	20	91.5	78.5	14.8	60
24291-24-24T	2"X12	40	24	109.4	92	14.8	60
24291-20-20W	1.11/16"X12	32	20	93	100	15	50
24291-20-24W	1.11/16’X12	40	24	109.4	113.5	15	50
Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 24292-XX-XX
