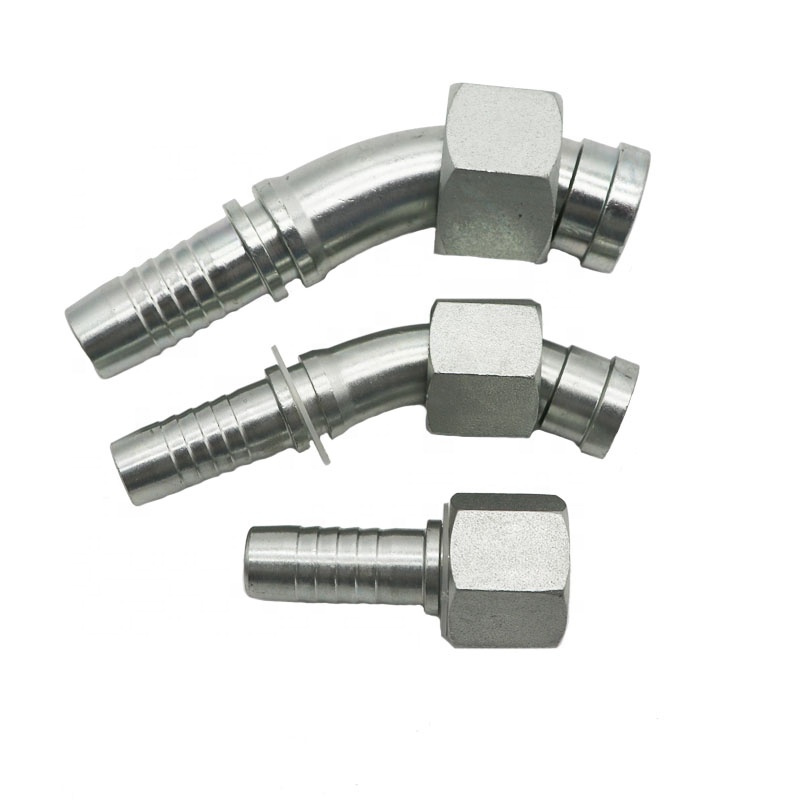

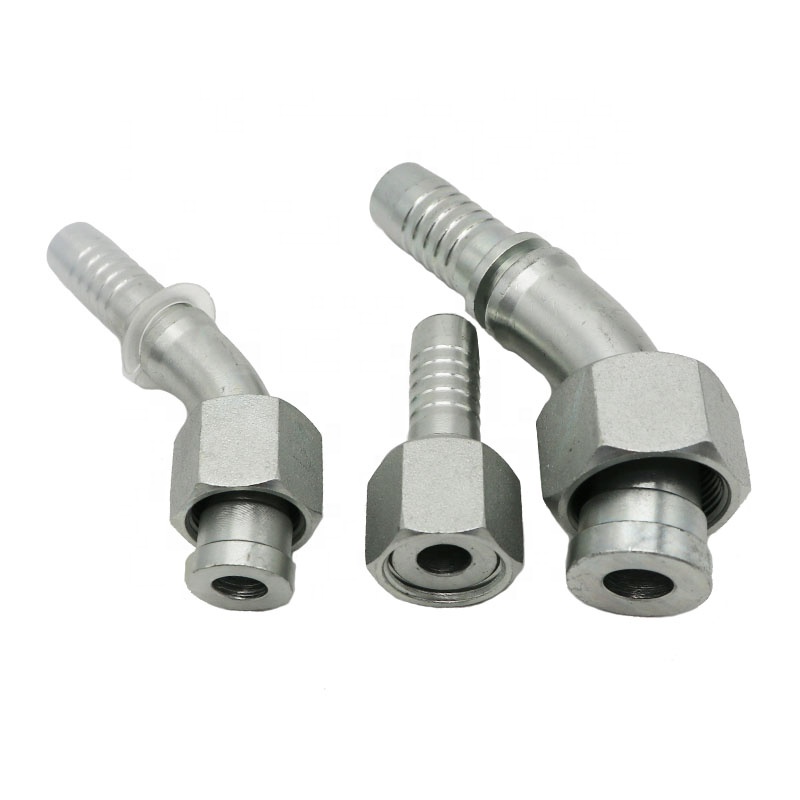

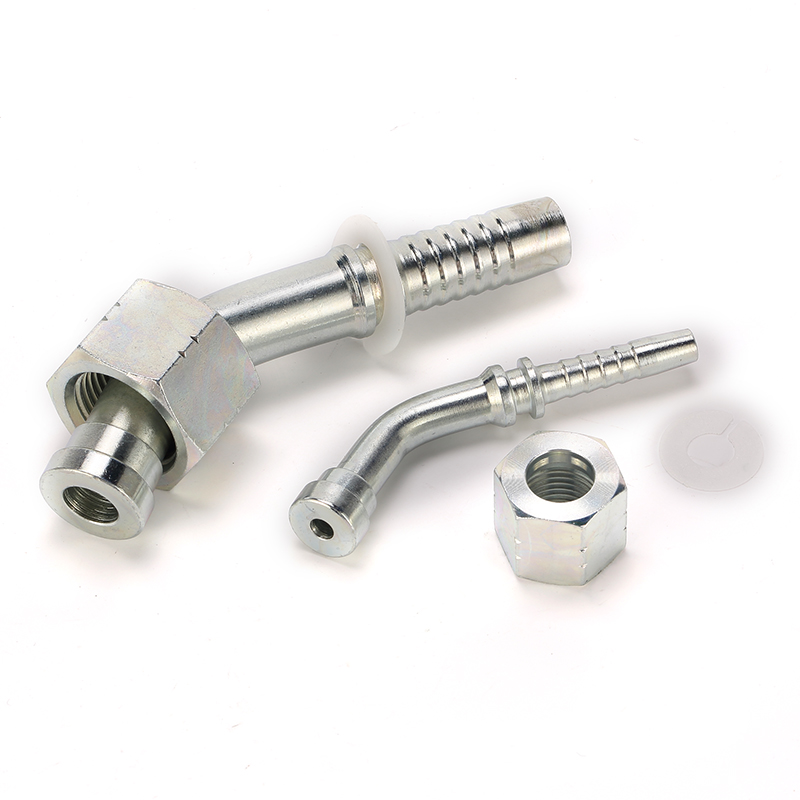

45° ORFS Female Flat Seat ISO 12151-1---SAE J516 hydraulic hose fitting .It could use for braided hoses and spiral hoses . On the other hand , it has different material for customer work condition . Such as :steel , stainless steel 304 and 316 , and else .We are professional manufaturer for hydraulic fitting and ferrule , we could produce the part according to your drawing and sample .

Specifications

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	H	C	S2
24241-04-04	9/16"X18	6	4	45.5	23.4	8.5	19
24241-04-05	9/16"X18	8	5	47.6	24.3	8.5	19
24241-04-06	9/16"X18	10	6	49.2	24.9	8.5	19
24241-06-06	11/16"X16	10	6	51.7	27.4	10	22
24241-06-08	11/16"X16	12	8	63.9	29	10	22
24241-08-08	13/16"X16	12	8	65.3	30.4	11	27
24241-08-10	13/16"X16	16	10	76.5	31.7	11	27
24241-10-10	1"X14	16	10	79.7	34.9	13.5	30
24241-10-12	1"X14	20	12	86.5	38.4	13.5	30
24241-12-12	1.3/16"X12	20	12	87.6	39.5	15	36
24241-12-16	1.3/16"X12	25	16	95.3	41	15	36
24241-16-20	1.7/16"X12	32	20	103.8	46.1	14.8	41
24241-06-04T	11/16"X16	6	4	39.5	17.4	10	22
24241-06-05T	11/16"X16	8	5	42.3	19	10	22
24241-08-06T	13/16"X16	10	6	44.6	20.3	11	27
24241-10-08T	1"X14	12	8	58.2	23.3	13.5	30
24241-12-08T	1.3/16"X12	12	8	58.2	23.3	15	36
24241-12-10T	1.3/16"X12	16	10	69.4	24.6	15	36
24241-16-12T	1.7/16"X12	20	12	74	29.6	14.8	41
24241-16-14T	1.7/16"X12	22	14	78.7	28.5	14.8	41
24241-16-16T	1.7/16"X12	25	16	84.1	29.7	14.8	41
24241-20-16T	1.11/16"X12	25	16	80.9	32.7	15	50
24241-24-20T	2"X12	32	20	94.5	33.8	14.8	60
24241-24-24T	2"X12	40	24	108.5	37.7	14.8	60
24241-20-20W	1.11/16"X12	32	20	111.2	49	15	50
24241-20-24W	1.11/16"X12	40	24	123.6	52.9	15	50
Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is 24242-XX-XX.
